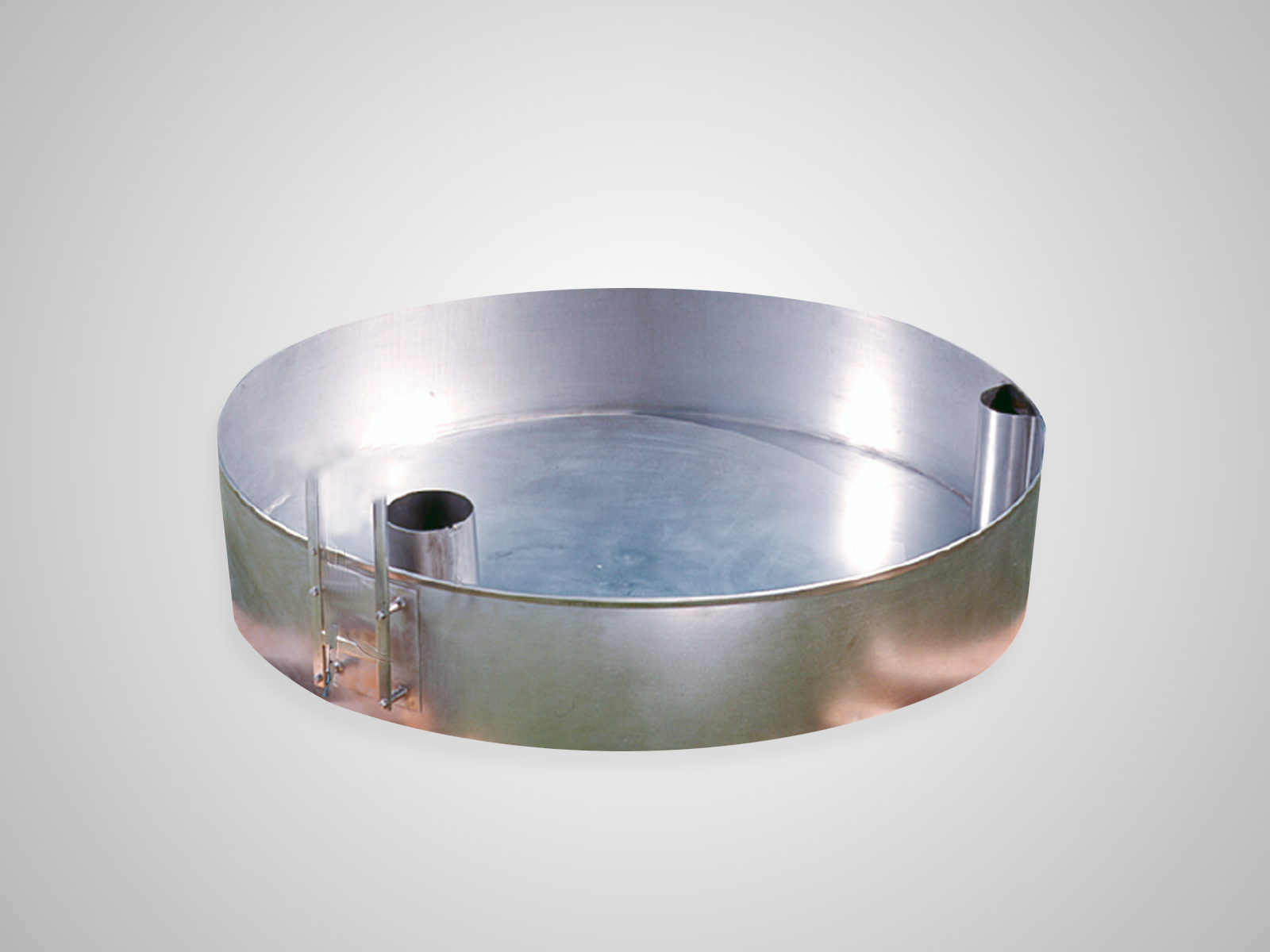

Evaporimeter pan and wooden or plastic platform are built to WMO standards for class “A” evaporimeters. The evaporimeter pan is made from stainless steel. Water level sensor is installed in pan and probe position is ensured by holder.

Piezometric water level sensor has various interfaces as RS-485 or SDI-12 and is connected to data acquisition system (data logger). Evaporimeter can be equipped with a floating temperature sensor. The TSP digitally compensated pressure transmitter combines advanced piezoresistive metal sensor and transmitter design. Output signal of pressure sensor is gained, digitized and worked in CPU with 16-bit A/D converter, which enables better pressure transmitter linearity and temperature compensation. Output D/A converter is 12 bit. TSP is designed for level measurement in tanks, evaporation pans.

FEATURES

• INTEGRATED OVERVOLTAGE PROTECTION
• STANDARD LEVEL RANGES 0 TO 0.25 M
• EXTREMELY STABLE AND ACCURATE
• INTERFACE RS-485, SDI-12
• HIGH RELIABILITY
